The MEGA 200 Pro Solar Panel delivers reliable 200-watt 24V power, ideal for off-grid applications like RVs, boats, and cabins. Designed for durability and efficiency, it features a 25-year output warranty and UL certification, ensuring long-term performance and safety. Begin your off-grid solar setup with confidence using this premium 24V panel from RICH SOLAR.

Features

Generates 5.51A of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.

Excellent low-light performance even on early mornings, evenings, and cloudy days.

Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.

Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.

25-year limited warranty for power output; 10-year workmanship warranty.

Installation

Easy installation and handling for various applications (high-end off-grid and mobile applications)

Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts

Compatible with on-grid and off-grid inverters

Warranty

25-year limited power output warranty

10-year workmanship warranty

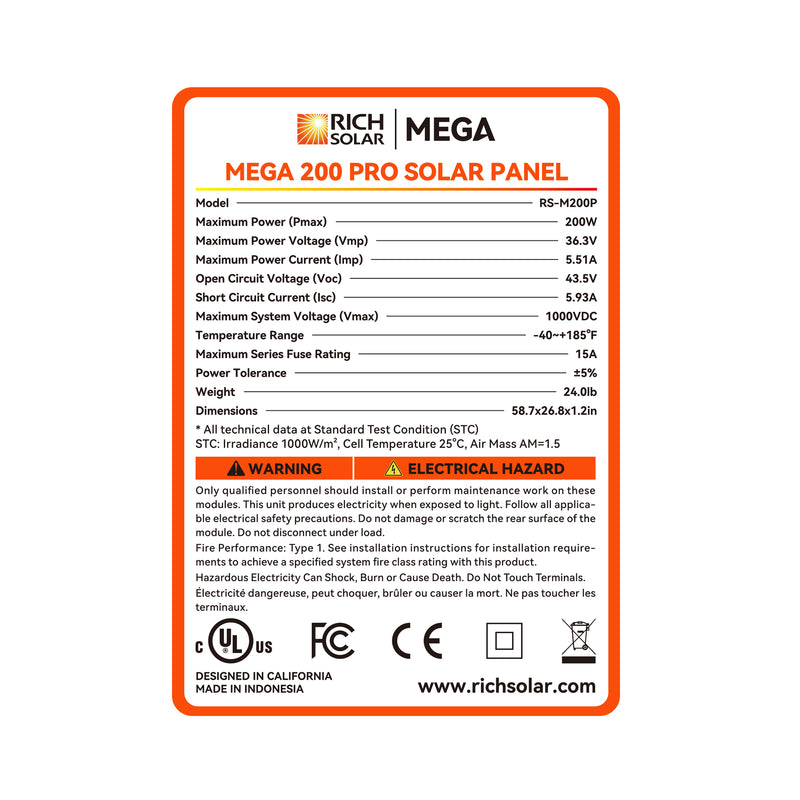

Specifications

Maximum Power(Pmax): 200W

Maximum Power Voltage(Vmp): 36.3V

Maximum Power Current(Imp): 5.51A

Open Circuit Voltage(Voc): 43.5V

Short Circuit Current(Isc): 5.93A

Maximum System Voltage: 1000 VDC

Maximum Series Fuse Rating: 15A

Temperature Range: -40 ~ +185°F

Weight: 24.0 lb

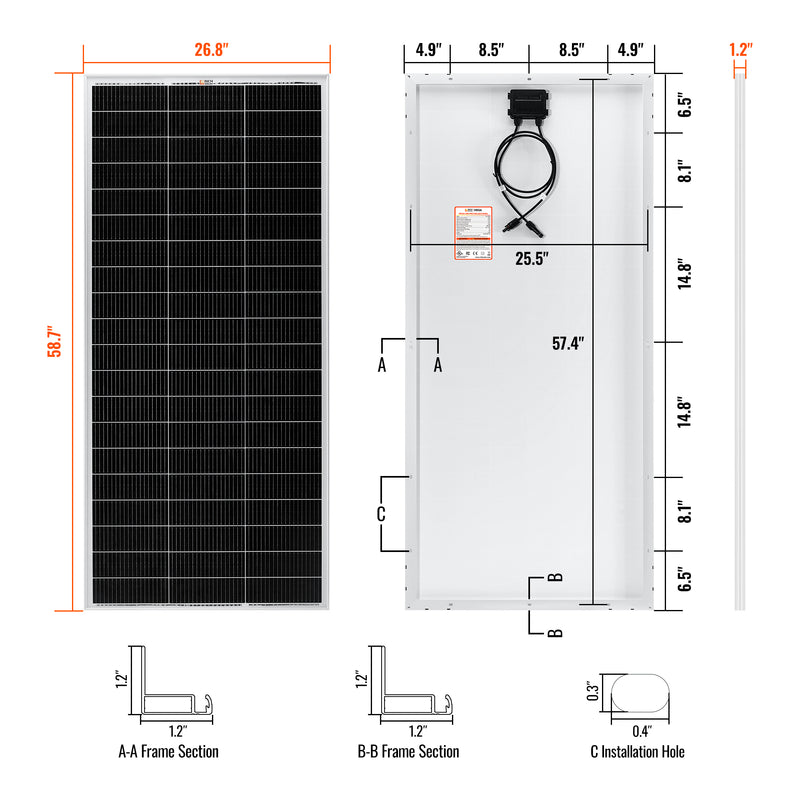

Dimensions: 58.7 x 26.8 x 1.2 in
