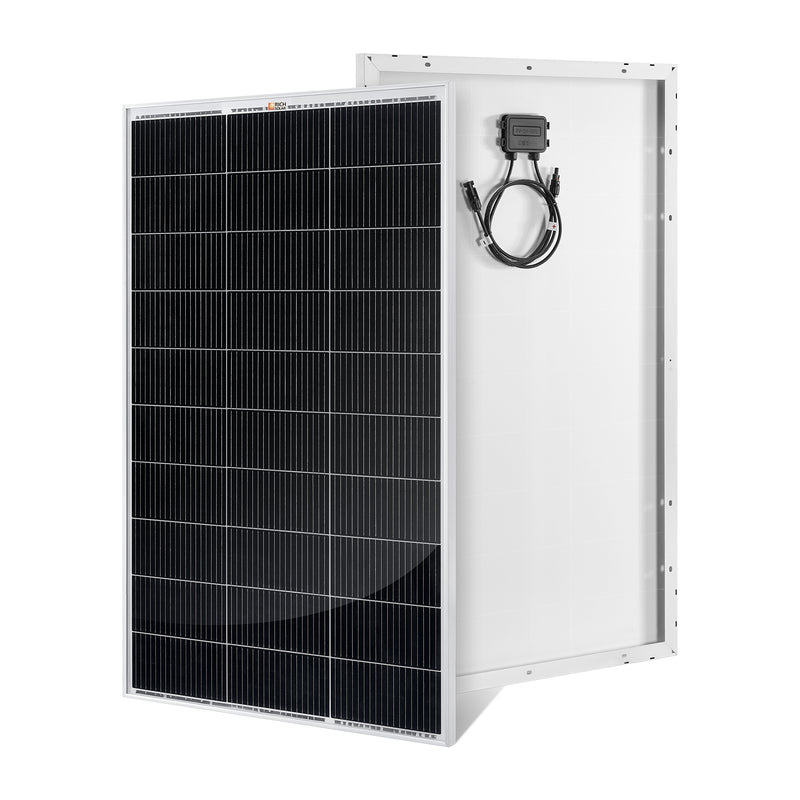

Combining 24.8% high efficiency and a compact design, the MEGA 150 solar panel provides optimized solar energy for any off-grid application. Built with lightweight aluminum anodized frames and an 18-busbar solar cell configuration for durability and high efficiency for optimized performance.

Features

18 busbar solar cell configuration

Lightweight anodized aluminum frame

High Transmission, AR (anti-reflective) Coated Tempered Glass

Plug-and-play junction box

Industry-standard quick-connect cables work in series or parallel

Certified to withstand challenging environmental conditions

Excellent low-light performance on cloudy days, mornings, and evenings

Installation

Easy installation and handling for various applications (high-end off-grid and mobile applications)

Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts

Compatible with on-grid and off-grid inverters

Built-in Components

Panel leads (pair): 3 feet each

IP67-rated waterproof junction box

IP67-rated waterproof solar connectors

Bypass diodes built into the junction box

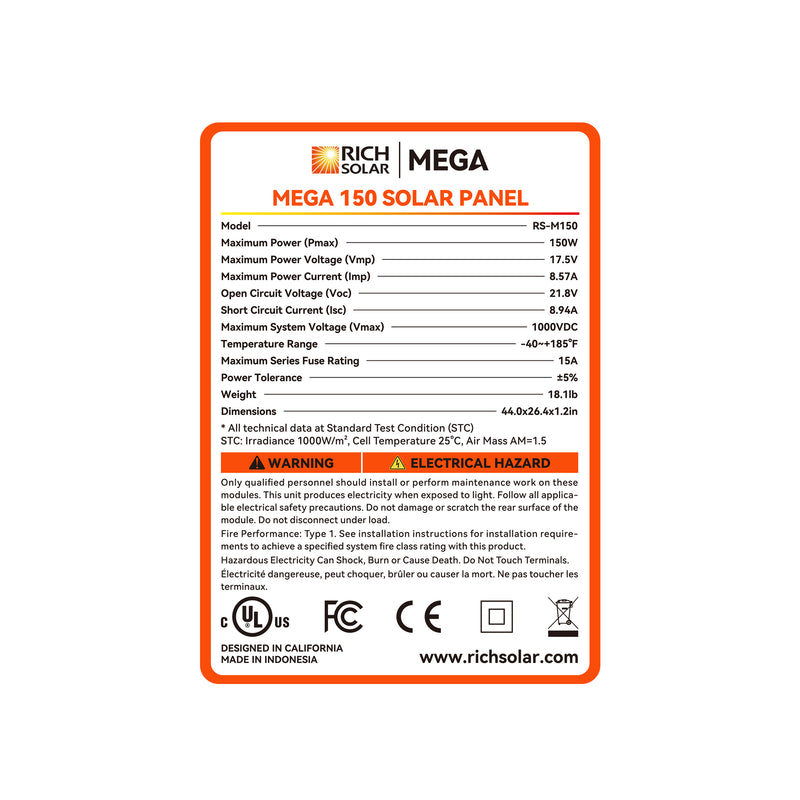

Specifications

Product Specifications

Model: RS-M150

Maximum Power (Pmax): 150 W

Maximum Power Voltage (Vmp): 17.5V

Maximum Power Current (Imp): 8.57A

Open Circuit Voltage (Voc): 21.8V

Short Circuit Current (Isc): 8.94A

Maximum System Voltage (Vmax): 1000VDC

Maximum Series Fuse Rating: 15A

Temperature Range: -40 ~ +185°F

Weight: 18.1 lb

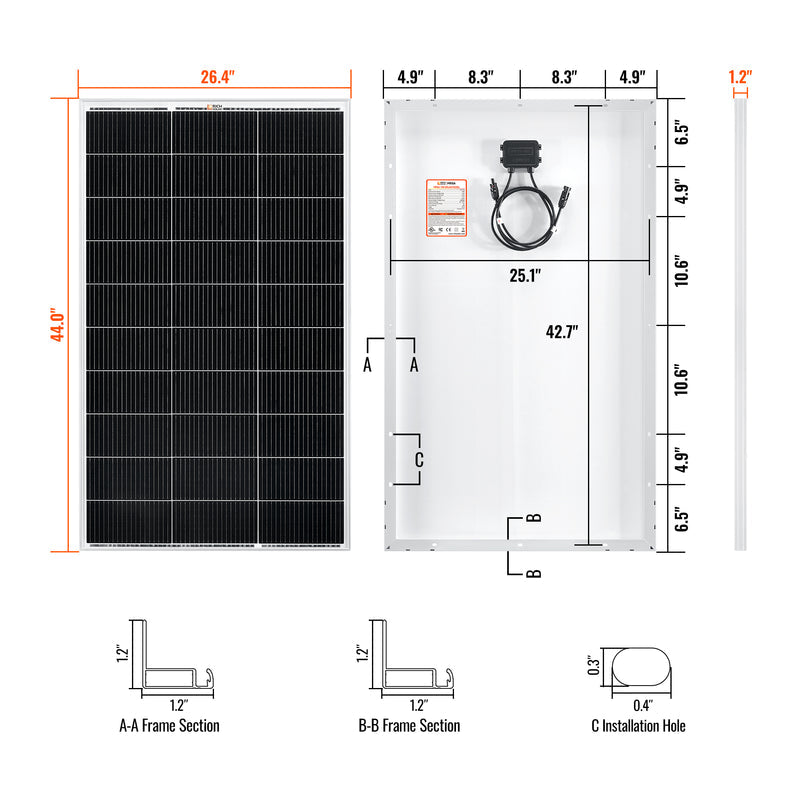

Dimensions: 44.0 x 26.4 x 1.2 in
