Features

16-busbar solar cell configuration

Lightweight, anodized aluminum frame

High Transmission, AR (anti-reflective) Coated Tempered Glass

Plug-and-play junction box

Industry-standard quick-connect cables work in series or parallel

Excellent low-light performance on cloudy days, mornings and evenings

Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)

Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

Easy installation and handling for various applications (high-end off-grid and mobile applications)

Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts

Compatible with on-grid and off-grid inverters

Warranty

25-year output warranty

10-year workmanship warranty

Built-in Components

Panel leads (pair): 3 feet each

IP67-rated waterproof junction box

IP67-rated waterproof solar connectors

Bypass diodes built into the junction box

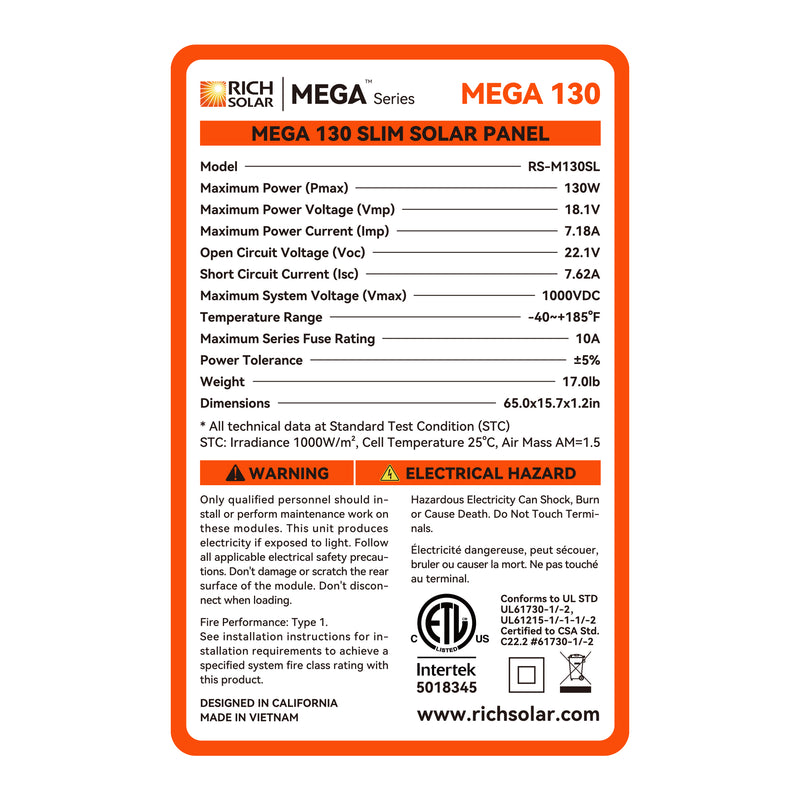

Specifications

Model: RS-M130SL

Maximum Power(Pmax): 130W

Maximum Power Voltage(Vmp): 18.1V

Maximum Power Current(Imp): 7.18A

Open Circuit Voltage(Voc): 22.1V

Short Circuit Current(Isc): 7.62A

Maximum System Voltage(Vmax): 1000 VDC

Maximum Series Fuse Rating: 10A

Module Efficiency: 19.7%

Temperature Range: -40℉ to +185℉

Weight: 17.0lb (7.7kg)

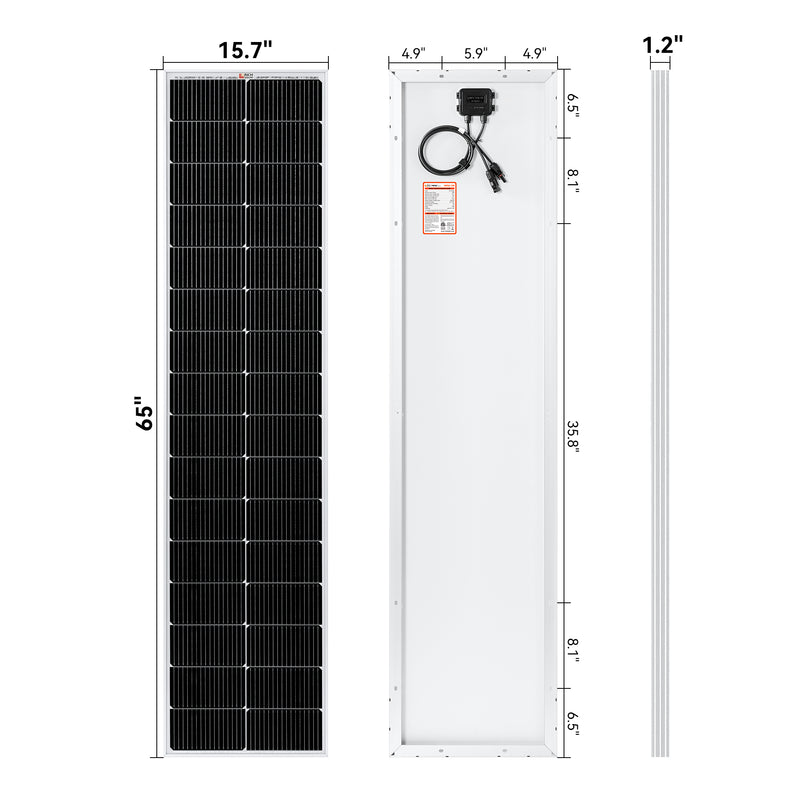

Dimensions: 65.0in x 15.7in x 1.2in (1650mm x 400mm x 30mm)
