$722.51 USD

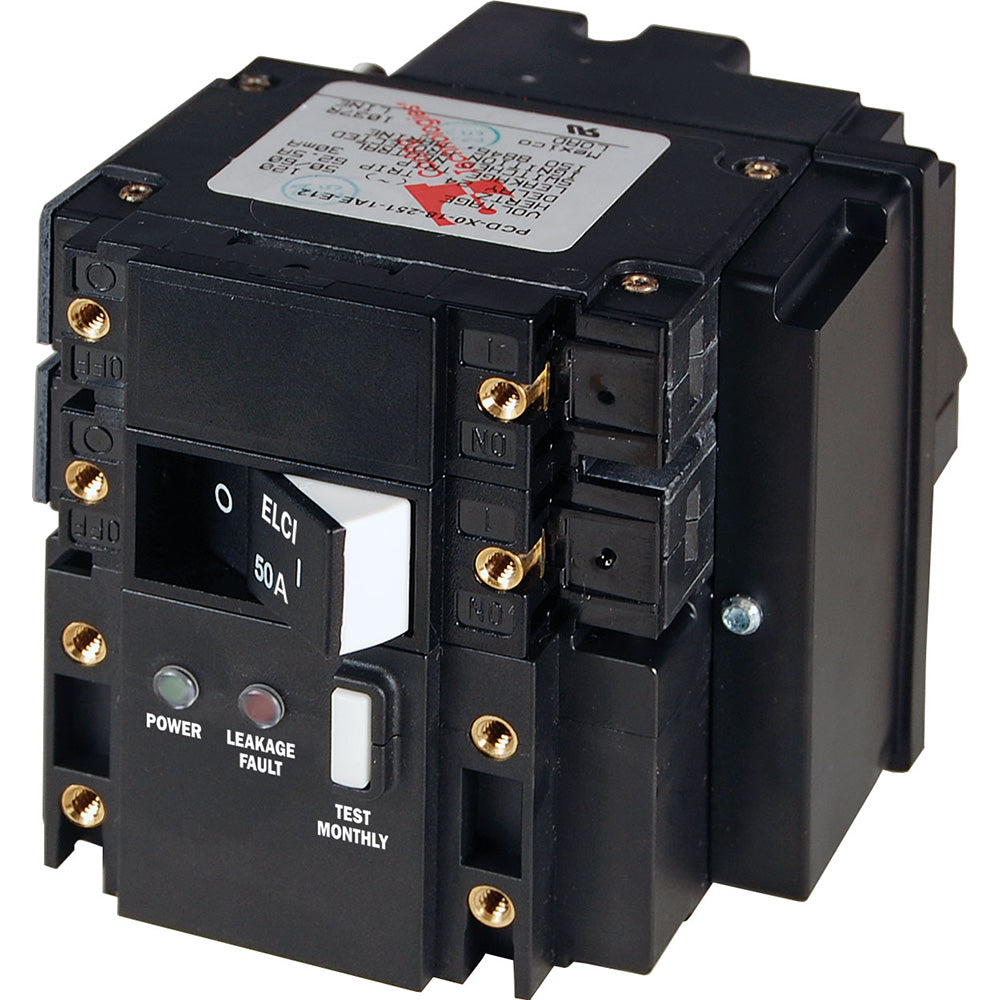

C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A


  • Trips on short circuits, overloads, or leakage to ground
  • Front panel mount—installed in a power distribution panel


  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Maximum Voltage: 120V AC per pole & 240V AC per pole
  • Circuit Breaker Type: Magnetic Hydraulic (trip free)
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35° C
  • Maximum Operating Temperature: 66° C
  • Leakage Trip Amps: 30mA
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Weight: 1.20 lb. (0.54 kg)

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


  • Amperage: Fifty
  • Box Dimensions: 5"H x 5"W x 6"L WT: 1.2 lbs
  • UPC: 632085030933

Quick Guide (pdf)
